High-power LED Red+blue dual color 5W integrated LED light source for spectral therapy .
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | BOSMFC |
| Zertifizierung: | Rohs, Reach |
| Modellnummer: | 3030 SMD LED IR |
Zahlung und Versand AGB:
| Min Bestellmenge: | 100pcs |
|---|---|
| Verpackung Informationen: | 100pcs/Rolle, Rollen+Antistatikbeutel+Karton |
| Lieferzeit: | 5-15 Tage |
| Zahlungsbedingungen: | T/T, Western Union, Paypal |
| Versorgungsmaterial-Fähigkeit: | 500kk/Monat |
|
Detailinformationen |
|||
| Leistung: | 5W | Farbe emittieren: | Red+Blue |
|---|---|---|---|
| Wellenlänge: | 620 nm/460nm | Vorwärtsstrom: | 350 mA |
| Vorwärtsspannung: | 6-7V | Blickwinkel: | 120 ° |
| Größe: | 23*15,5*6mm | Betriebstemperatur (℃): | -40 - +85 |
| Lagertemperatur (℃): | -40 - +100 | Lebensdauer: | 50.000 Stunden |
| Garantie: | 3 Jahre | Chip -Marke: | San'an Chip / Epistar Chip |
| Paket: | 100 Stück pro Walze | ||
Produkt-Beschreibung

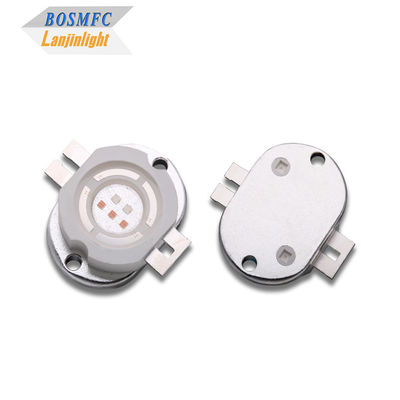

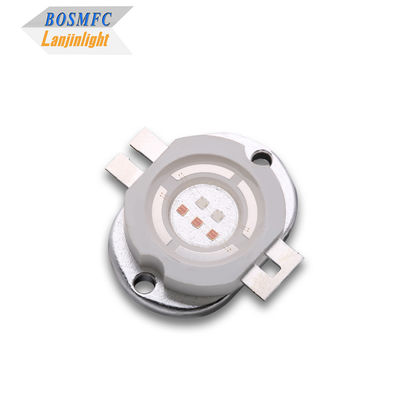

High-power LED Red+blue dual color 5W integrated LED light source for spectral therapy
This high-power 5W integrated LED light source combines red and blue wavelengths in a single robust package. Designed for professional spectral therapy devices, it delivers targeted phototherapy - the blue light effectively targets acne-causing bacteria while the red light stimulates collagen production and reduces inflammation. Its integrated design ensures consistent performance and thermal stability, making it an ideal core component for clinical-grade skincare and pain relief equipment requiring reliable, high-intensity light treatment.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Instant light(less than 100ns)
- RoHS and Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 625nm
460nm |
--- |
915 1315 |
--- | LM | IF=350mA |
| Dominant wavelength | 625nm
460nm |
620 457 |
--- |
625 462 |
nm | IF=350mA | |
| Forward voltage | VF | 625nm
460nm |
6 6
|
--- |
7 7 |
V | IF=350mA |
| Viewing angle | --- | 120 | --- | deg | IF=350mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=350mA |
| Operation Temperature | －40~+85℃ | Size | 23*15.5*6mm |
| Storage Temperature | －40~+100℃ | Packing | 100pcs/reel |
Applications:
1. Acne Treatment - Blue light combats bacteria.
2. Anti-Aging Care - Red light boosts collagen.
3. Skin Rejuvenation - Improves tone and texture.
4. Pain Management - Soothes muscles and joints.
5. Wound Healing - Accelerates tissue repair.
Materials:
